Accessories

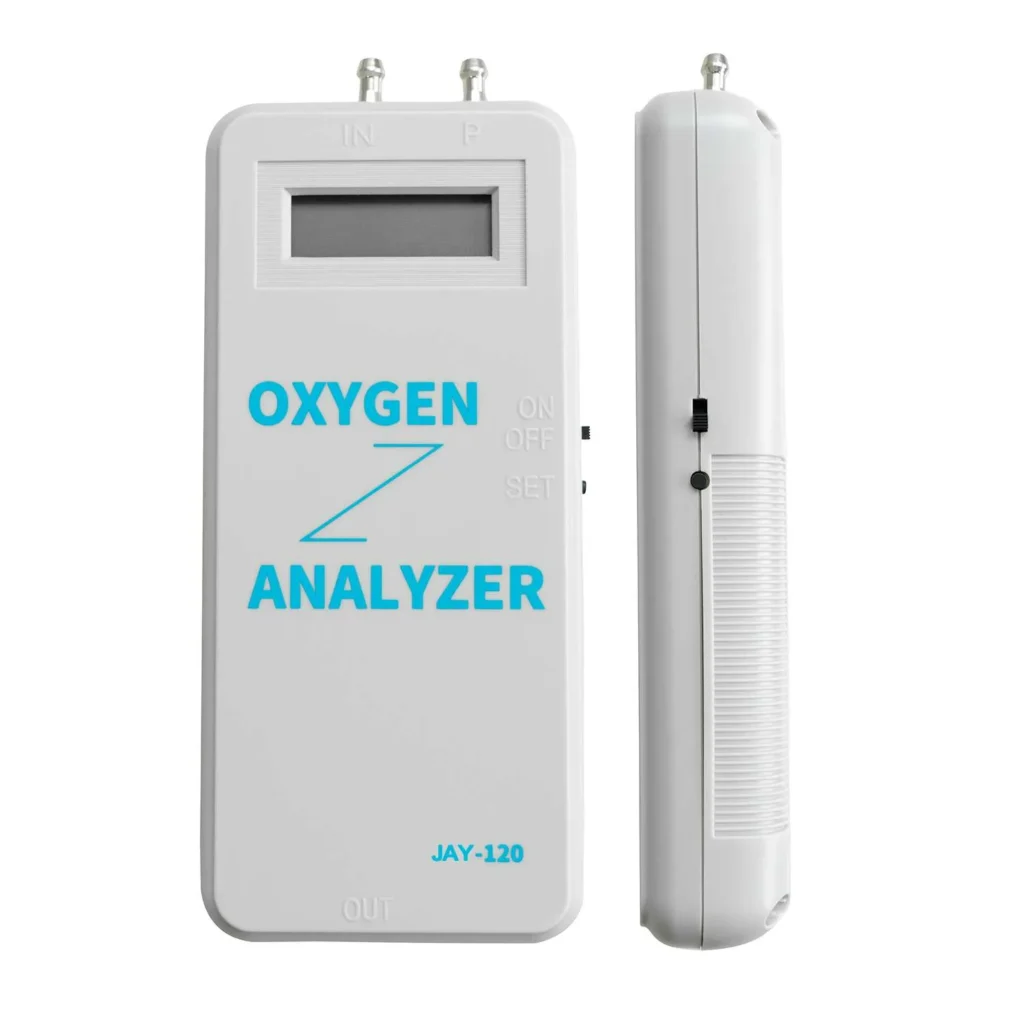

Oxygen Analyzer JAY-120
Features
- The oxygen analyzer measures oxygen concentration flow using ultrasound technology. It has the characteristics of high accuracy, strong anti-interference ability, rapid response, long-term stability, no need for regular adjustment, and long lifespan;
- The pressure test adopts imported modules with high accuracy.
Specification
| JAY-120 | |||
|---|---|---|---|
| Operating Voltage (V) | DC 9V | Pressure Detection Range | 0-21Psi |
| Operating Temperature (℃) | 5℃~55℃ | Dimension (mm) | 185*80*31mm |
| Storage Temperature (℃) | -5℃~65℃ | Relative Humidity | 5%~85%RH |
| Flow Detection Range | 0-10 L/min | ||
| Flow Detection Accuracy | ±0.2 L/min | ||
| Oxygen Concentration Detection Range (V/V) | 21.0% -- 96.0% | ||
| Oxygen Concentration Detection Accuracy (V/V) | ± 2% | ||
| Pressure Detection Accuracy | ± 1Psi | ||

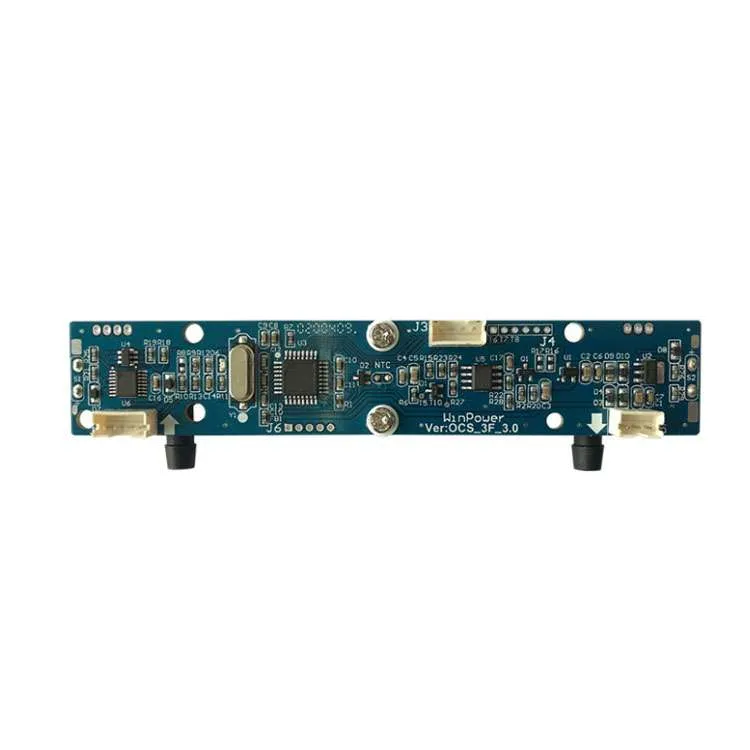

Oxygen Sensor JAY-110A
Features
- Oxygen sensor is aimed for oxygen concentration and flow rate monitor;
- It adopts ultrasonic technology with high accuracy, strong anti-interference ability, rapid response, and long service life features.
Specification
| JAY-110A | |||
|---|---|---|---|
| Flow Resolution | 0.1L/min | Weight | 25g |
| Max Pressure | 150Kpa | Size (mm) | 120.5(L)*22(W)*22(H) |
| Power | DC5V-12V | Max Flow | 10LPM |
| Flow Detection Accuracy | ±2%L/min or readings 5% (MAX) | ||
| LED Indicator |
Red: oxygen purity < 82% Blue: oxygen purity ≥ 82% Yellow: flow rate < 0.5L/min |
||
| Purity Detection Accuracy | ±2%L FS@ (5~55)℃ | ||
| Output | UART port support purity and flow signal output | ||

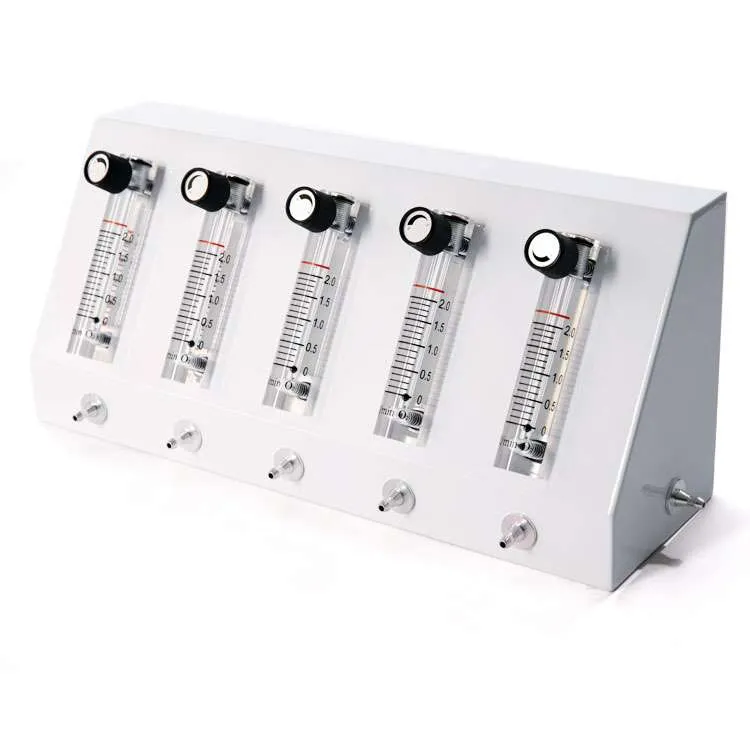

Flow Splitter JAY-500
Features
- Flow splitter can be divided into several flow for more patients to inhale oxygen at the same time;
- The 5 flow meters in this flow splitter can work independently or together by adjusting flow knob ;
- Minimum oxygen flow for a single oxygen outlet can be 0.125L/Min, which ensure the infant safety of oxygen therapy.
Specification
| JAY-500 | |||
|---|---|---|---|
| Inlet Pressure | 7PSI / 20PSI | Weight | 2.5kgs |
| Accuracy | ±5% | Size (cm) | 381*114*166mm |
| Operating Temperature | 5℃ to 40℃ | Storage Environment | -1℃ to 60℃ |
| Outlets | 2/3/4/5 or customization | ||
| Flowmeters | 2L/5L or customization | ||

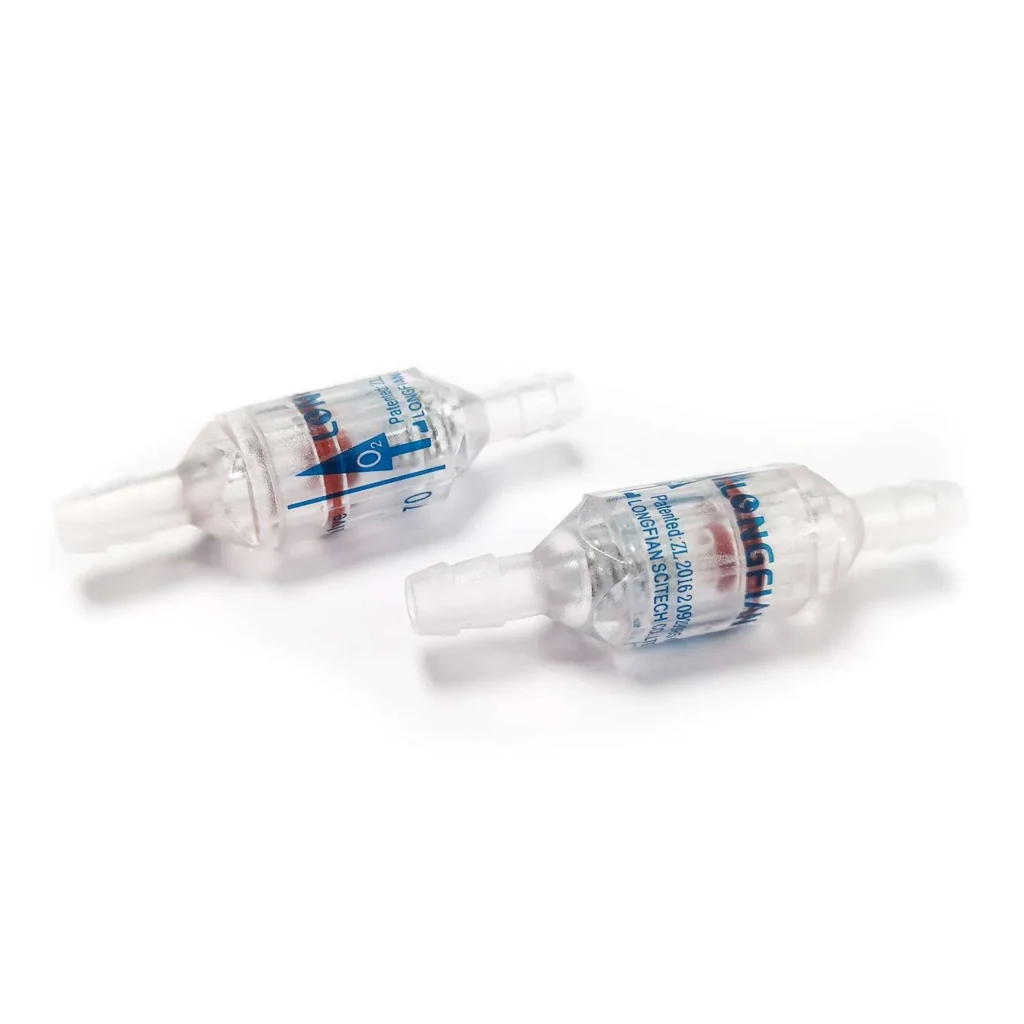

Firebreak Valve
Features
- Bi-directional design;
- Reduced size making it less noticeable in the supply tubing;
- Designed to protect against oxygen tubing fires;
- Operate from a thermal fuse designed to stop the flow of gas in the event that the downstream oxygen tubing is ignited;
- Keeps patients safe;
- Works with all types of oxygen sources, tank, oxygen concentrator and wall connection;
- Kit designed for 1 oxygen source*Does NOT restrict oxygen flow unless it senses heat/fire
Specification
| Firebreak Valve | |
|---|---|
| Resistance to Flow | 1 kPa @ 2 l/min 2 kPa @ 5 l/min 16 kPa @ 15 l/min |
| Flow Rate | 0.3 to 25 l/min |
| Max Operating Pressure | 400 kPa |
| Max Internal Leakage Following Activation | No leakage |
| Max External Leakage Following Activation | No leakage |
| Operating Temperature | 0 to 50 °C (32 to 122 °F) |
| Transit & Storage Temperature Range | -20 to 60 °C (-4 to 140 °F) |
| Gas Type | Oxygen / oxygen-enriched air |

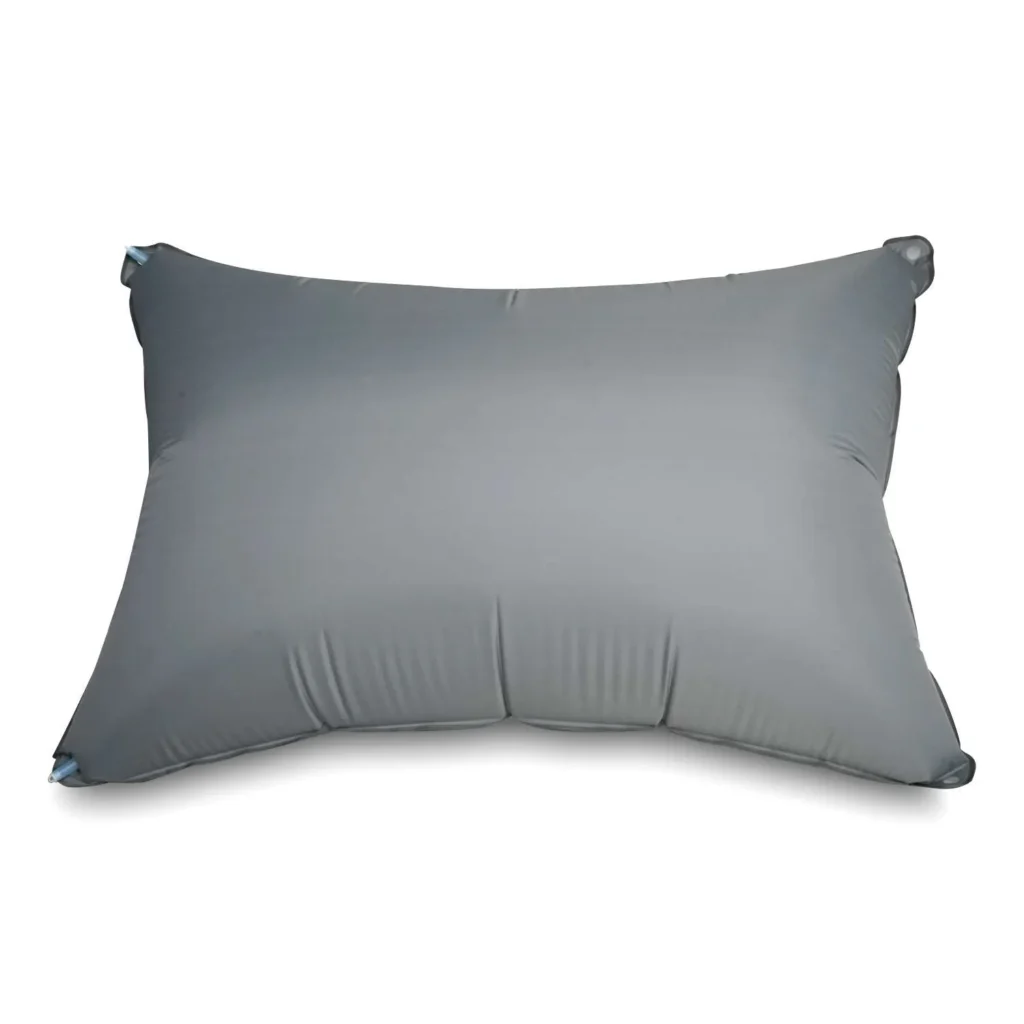

1000L Reservoir Bag of EWOT
Features:
- It can be folded for easy storage.
- Full 1000L reservoir bag supplies enough oxygen for your EWOT session.
- Four holes make it easy to hang on the stand and keep it in place.
- Large oxygen inlet and outlet for easy filling and inhalation.
- For oxygen injection and release.
Material Of Reservoir Bag
TPU (high-strength medical-grade composite fiber material) is mainly made of polyurethane, without plasticizers and phthalates, non-toxic and pollution-free.
Products using TPU materials are not easy to scratch, and have pressure resistance, durability, oil resistance, and corrosion resistance.
Compared with PVC materials, it is healthier, more environmentally friendly and has a longer service life.
Products using TPU materials are not easy to scratch, and have pressure resistance, durability, oil resistance, and corrosion resistance.
Compared with PVC materials, it is healthier, more environmentally friendly and has a longer service life.
EWOT Benefits:
- Improved circulation
- Stimulate the immune system
- Increase oxygenation of the tissues and cells
- Energy-boosting & increased metabolism
- Improved memory and cognitive function
- Reduced inflammation, joint and muscle pain, improved sleep quality and anti-aging
- Athletic performance benefits
- Aids in recovery
