Veterinary Oxygen Concentrator
Anaesthesia

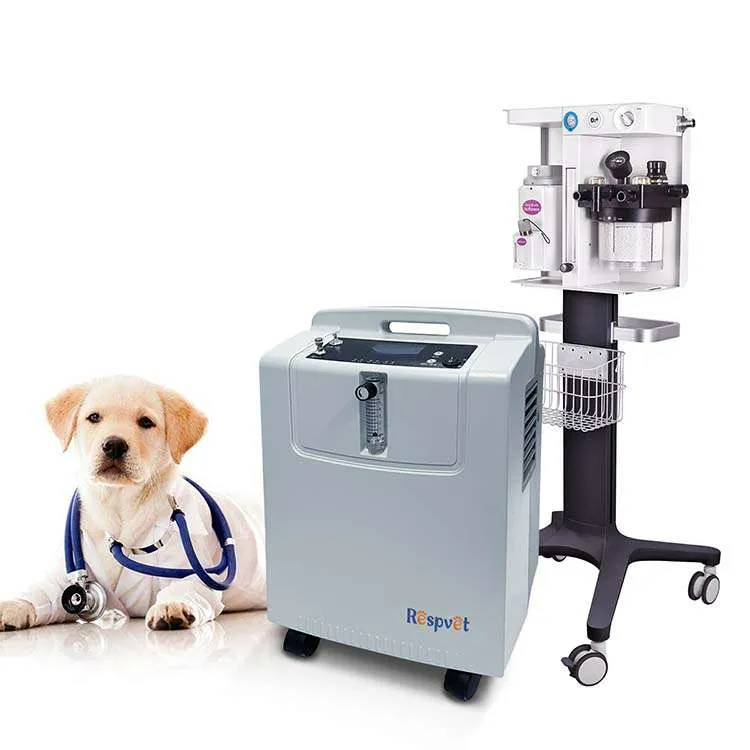

5L Veterinary Oxygen Concentrator For Anaesthesia
Features
During the surgery of the sick pets, providing the anaesthesia machine stable and timely oxygen source through the oxygen concentrator, which greatly guarantees the smooth progress of the surgery.
Specification
| Flow Rate | 0.5~5L/min | Net weight | 15Kgs |
|---|---|---|---|
| Oxygen Concentration | 93% (±3%) | Power Consumption | ≤ 350W |
| Outlet Pressure | 6-10 PSI (0.04-0.07 Mpa) | Input Frequency | 50Hz |
| Sound Level | ≤ 40dB | Input Voltage | AC230V ± 10%; AC110V ±10% |
| Alarm |
|
||

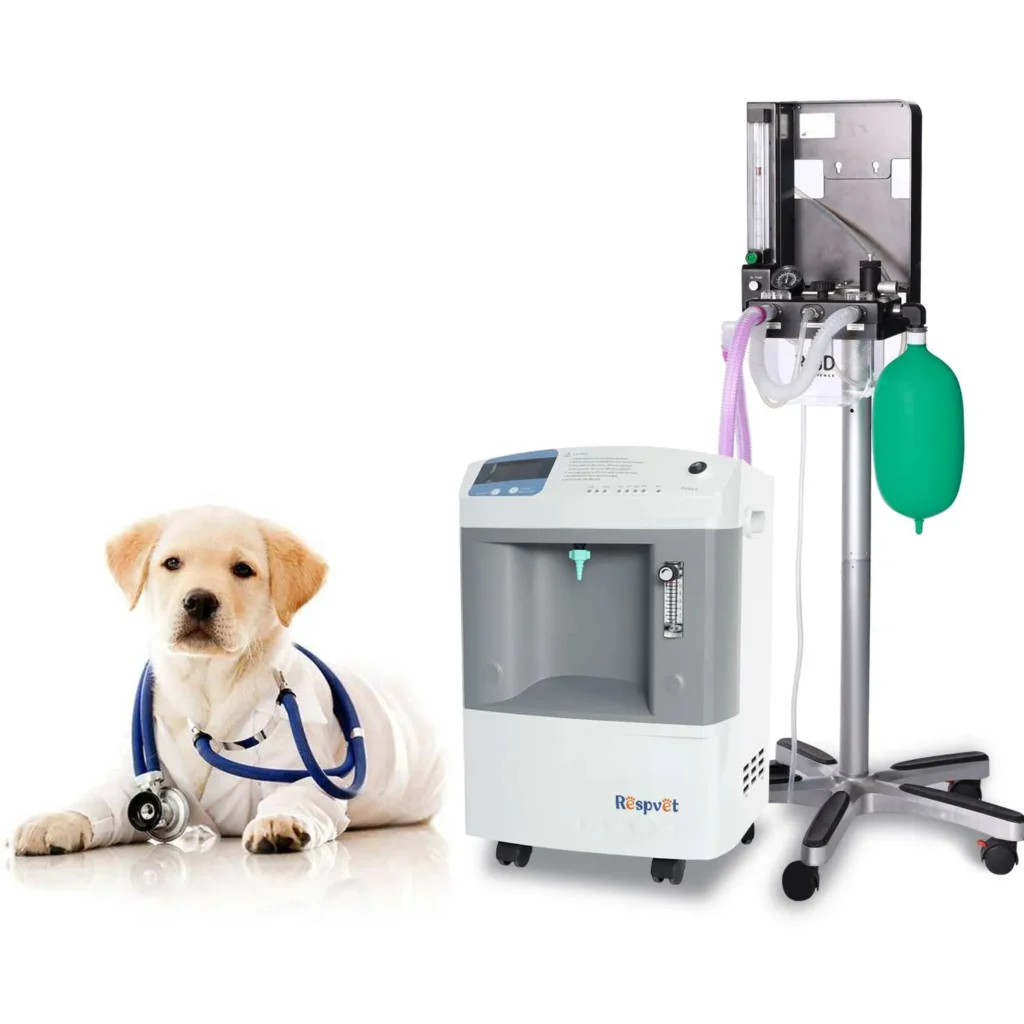

10L Veterinary Oxygen Concentrator For Anaesthesia
Features
During the surgery of the sick pets, providing the anaesthesia machine stable and timely oxygen source through the oxygen concentrator, which greatly guarantees the smooth progress of the surgery.
Specification
| Flow Rate | 0.5~10L/min | Net weight | 27Kgs |
|---|---|---|---|
| Oxygen Concentration | 93% (±3%) | Power Consumption | ≤ 880W |
| Outlet Pressure | 6-10 PSI (0.04-0.07 Mpa) | Input Frequency | 60 Hz |
| Sound Level | ≤ 50dB | Input Voltage | AC230V ± 10%; AC110V ±10% |
| Alarm |
|
||
High Pressure Veterinary Oxygen Concentrator For Anaesthesia
Features
- Using molecular sieve pressure swing adsorption principle, using air as raw material to physically produce oxygen;
- It can meet the oxygen supply for anesthesia machine, the outlet pressure is as high as 60 Psi (0.4Mpa), and it can be connected to most international brands of anesthesia machines and ventilators;
- For large animals more than 7kgs, such as cattle, horses, etc;
- It meets the various clinical demands of veterinarians, and is widely applicable to the oxygen supply for veterinary clinic surgery, post-operation, ICU and emergency;

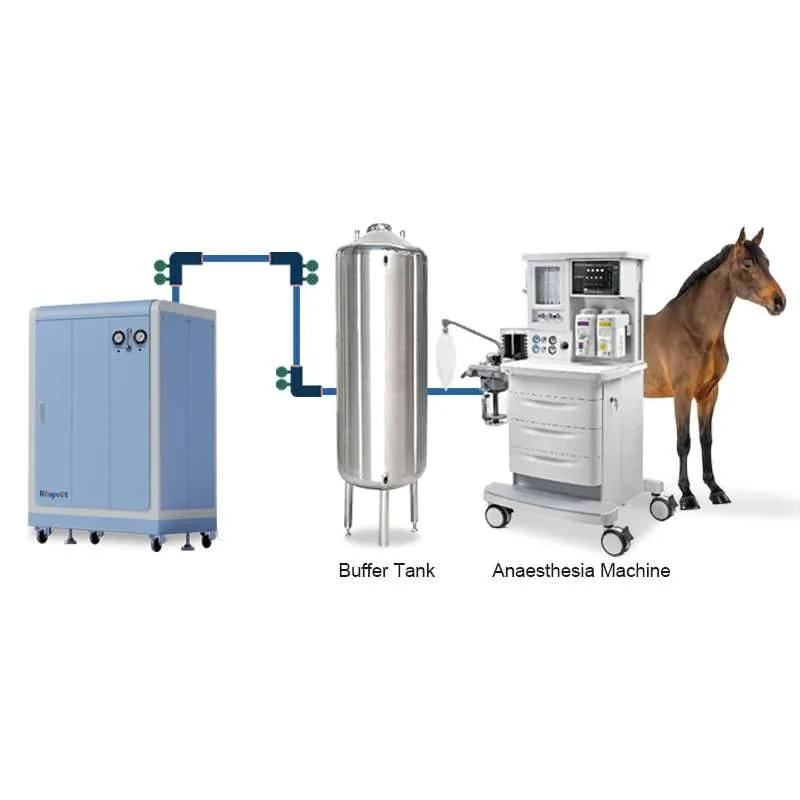

- It can connect with buffer tank to supply oxygen stably. According to the oxygen demand, the oxygen production program is automatically stopped and automatically started.
Specification
| Flow Rate | 1--10 L/min; 1--20 L/min | Net Weight | 90kgs ; 118kgs |
|---|---|---|---|
| Oxygen Concentration | 93% (±3%) | Power Consumption | ≤1250W ; ≤2000W |
| Outlet Pressure | 60 PSI (0.4Mpa) | Input Frequency | 50Hz ; 60 Hz |
| Sound Level | ≤ 50dB; ≤ 60dB | Input Voltage | AC230V ± 10% ; AC110V ±10% |
| Alarm |
|
||
