Medical Oxygen Concentrator
Hospital Oxygen Supply

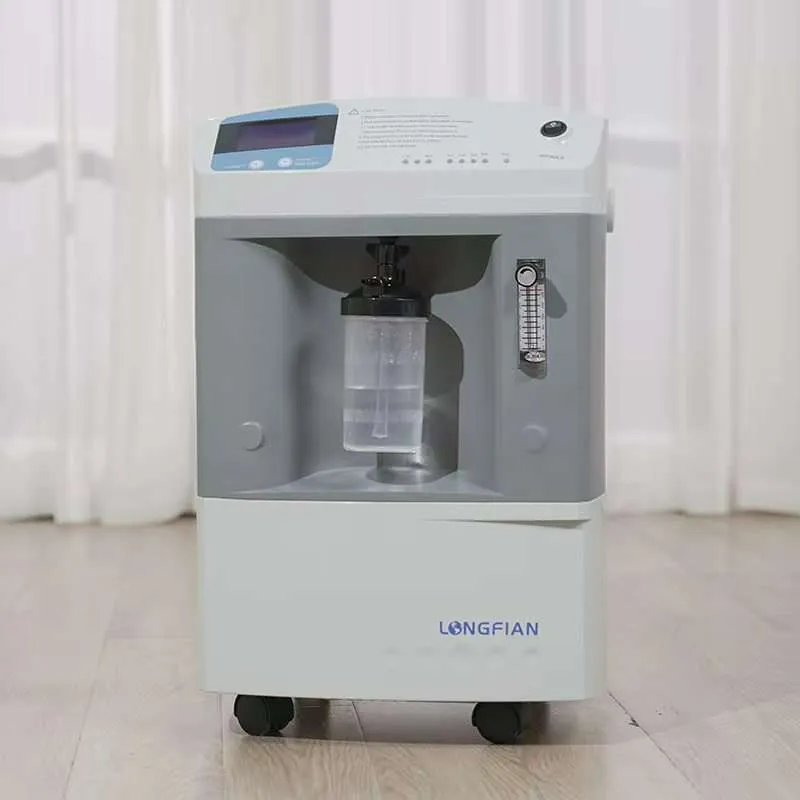

Stationary Oxygen Concentrator JAY-8 JAY-10
Features
- Flexibly four-wheels easy to move;
- The easy dial flow control, makes setting the flow easy;
- The indicator light clearly shows the operating status of the machine;
- Innovative big size LCD display convenient to view the operating parameters;
- Optional function dual flow, easy to use for two patients at same time;
- US humidifier bottle with 6 PSI pressure relief valve, comfortable to inhale oxygen;
- The storage box at the top can conveniently place accessories such as oxygen tubes;
- Inner case housing adopts ceramics technique, non spray paint;
- Customized mute cotton make sure non pulverization phenomenon min 3 years;
- The inside pipeline uses the medical grade silicone tube and nylon tube, more safe than industrial silicone tube and plastic tube, no pollution, no peculiar smell;
- Cooling system: copper tube and aluminum fins, compare with only aluminum or copper tube, better for heat dissipation and ensure the machine to continuously work for 24 hours without overheat interruption.
Specification
| Model | JAY-8 ; JAY-10 ; JAY-10 (20PSI) |
|---|---|
| Flow Rate | 0.5–8L/min; 0.5–10 L/min |
| Oxygen Concentration | 93% (±3%) |
| Outlet Pressure | 6-10 PSI; 20PSI (0.04-0.07 Mpa; 0.14Mpa) |
| Sound Level | ≤ 50dB |
| Net Weight | 27Kgs |
| Power Consumption | ≤ 880W |
| Input Frequency | 50Hz ; 60 Hz |
| Input Voltage | AC230V± 10% ; AC110V ± 10% |
| Alarm | 1. Power failure alarm; 2. High and low pressure alarm; 3. Low oxygen concentration alarm. |

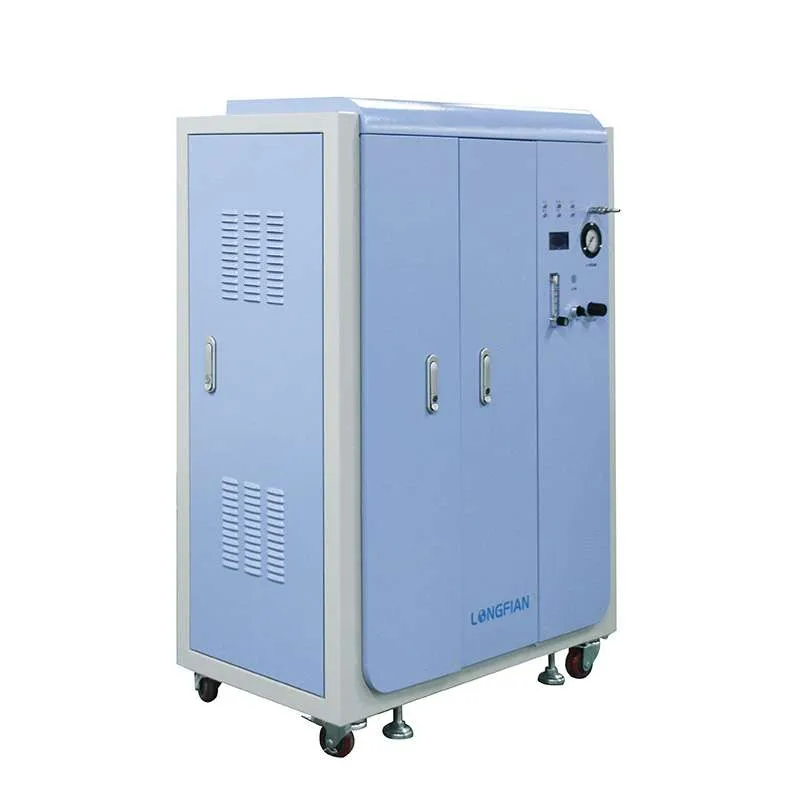

High Pressure Oxygen Concentrator
Features
- High efficiency three-tower adsorption system more durable;
- Pressure gauge on site to adjust flexibly if necessary;
- Small and compact, easy to move for any emergency;
- Automatic dehydrator/refrigerated air dryer;
- Optional: Auto off at 4 bar, auto on at 3 bar.
Specifications
| Model | JAY-10-4.0 ; JAY-20-4.0 ; JAY-40-4.0 |
|---|---|
| Flow Rate | 1--10 L/min; 1--20 L/min; 1--40 L/min |
| Oxygen Concentration | 93% (±3%) |
| Outlet Pressure | 60 PSI |
| Net Weight | 90kgs / 118kgs / 256kgs |
| Power Consumption | ≤1250W / ≤2000W / ≤4440W |
| Input Frequency | 50Hz ; 60 Hz |
| Alarm |
1. Power failure alarm; 2. High and low pressure alarm; 3. Low oxygen purity alarm. |

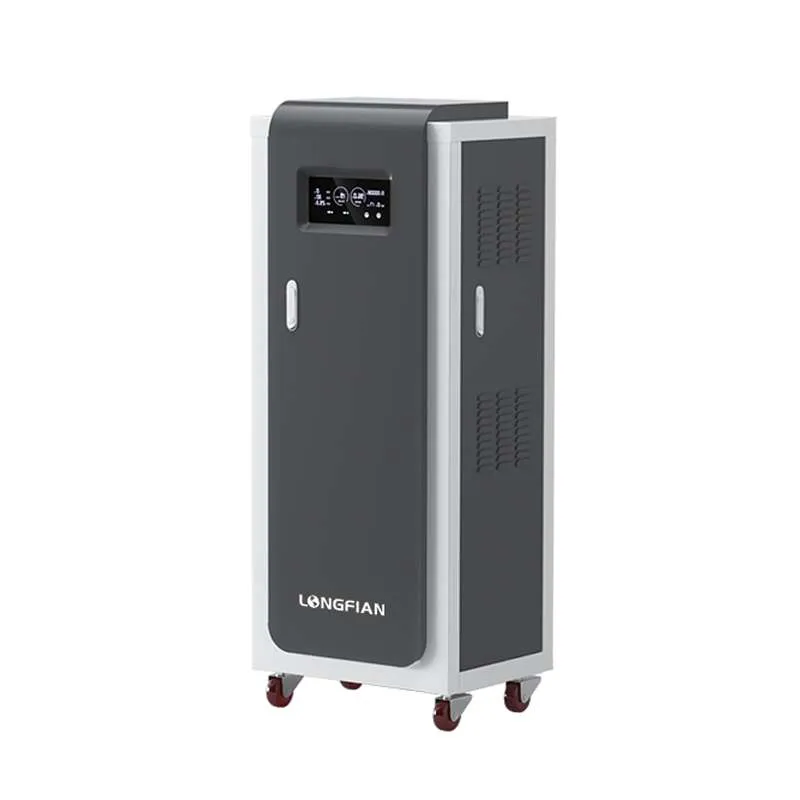

High Flow Oxygen Concentrator
Features
- Ultra quiet design with 4-cylinder compressor, can be used in ICU and operating rooms;
- Convenient to be installed anywhere;
- Available to connect oxygen tank, and optional function with auto-on (1 bar pressure) & auto-off (1.4 bar pressure), ensure the system longer lifespan;
- Head panel in patient rooms is available for optional accessories.
Specification
| Model | JAY-10D ; JAY-40 ; JAY-60 |
|---|---|
| Flow Rate | 1.2m³/h; 2.4m³/h; 3.6m³/h |
| Oxygen Concentration | 93% (±3%) |
| Outlet Pressure | 6-10PSI; 20PSI; 60PSI |
| Net Weight | 93 Kgs ; 160Kgs ; 245Kgs |
| Power Consumption | ≤1600W ; ≤2200W ; ≤3300W |
| Input Frequency | 50Hz ; 60 Hz |
| Alarm | 1. Power failure alarm; 2. High and low pressure alarm; 3. Low oxygen purity alarm. |
