Medical Oxygen Concentrator
Oxygen Therapy

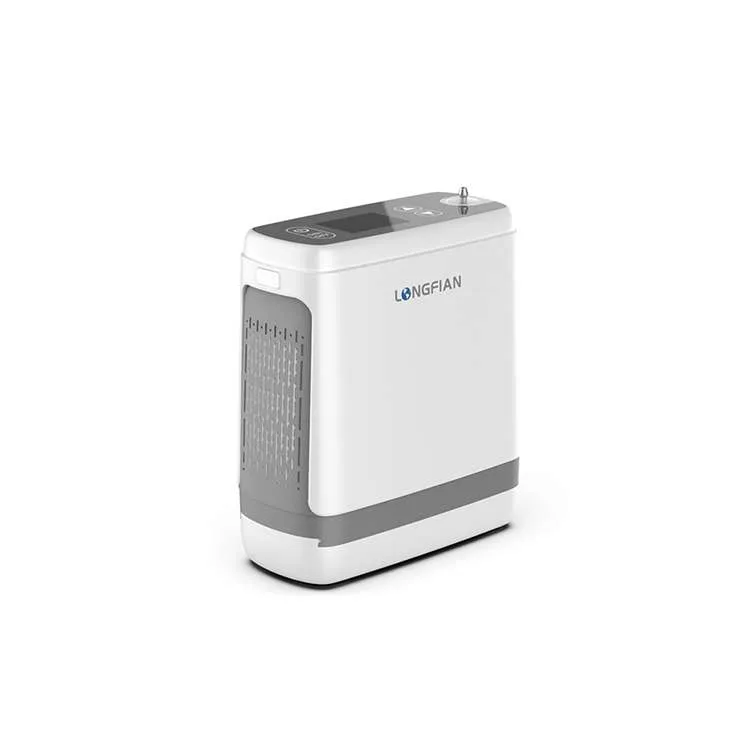

Portable Oxygen Concentrator (Pulse Dose)
Features
- Upgraded pulse flow settings 1-5, equivalent to 5 litres per minute of continuous oxygen flow;
- Mini size and light weight at only 1.98kgs;
- Easy-to-remove external battery;
- With a strong, comfortable shoulder bag;
- 12-cells battery for up to 7 hours of battery life.
Specifications
| Portable Oxygen Concentrator (Pulse Dose) | |
|---|---|
| Oxygen Flow | 1L/Min (Continuous Flow); 1-5L/Min (Pulse Flow) |
| Oxygen Concentration | 93%±3% |
| Battery | 8 cells battery; 12-cells battery (optional) |
| Net weight | 1.98Kgs (4.37lbs) (includes single battery) |
| Dimension | 183*86*199mm |

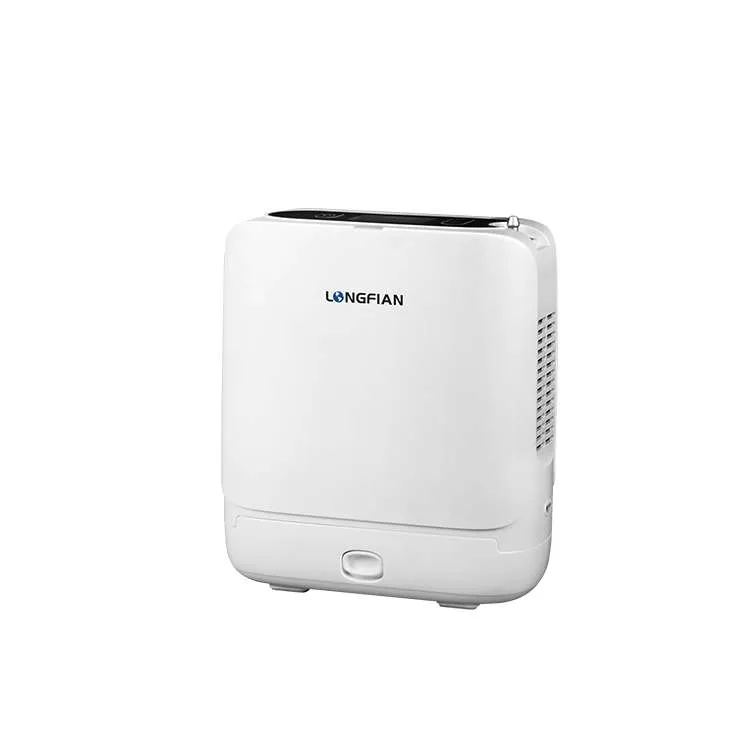

Portable Oxygen Concentrator JAY-1000
Features
- Upgraded pulse flow settings 1-5;
- Mini size and light weight at only 1.5kgs;
- Easy-to-remove external battery;
- With a strong, comfortable shoulder bag;
Specifications
| Portable Oxygen Concentrator JAY-1000 | |
|---|---|
| Oxygen Flow | Pulse dose delivery; Five settings 1-5 |
| Oxygen Concentration | 93%±3% |
| Battery | 6 hours |
| Net weight | 1.5Kgs (3.3lbs) (includes single battery) |
| Dimension | 193*83*173mm |

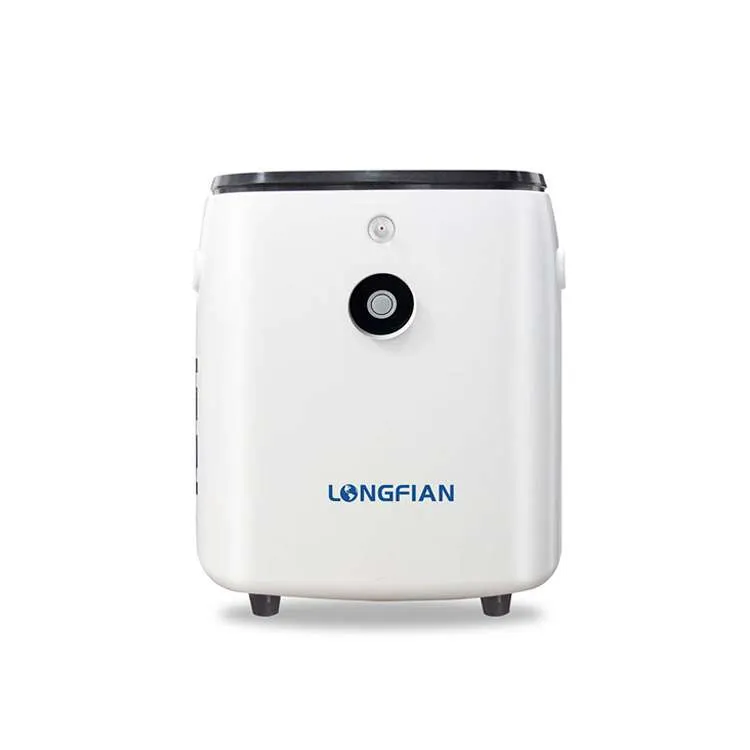

Portable Oxygen Concentrator (Continuous)
Features
- Compact design, light weight and easy to carry.
- Energy efficient and low power consumption.
- Multiple ways of power supply, connect with AC power at home, with DC power in car, also with the battery outdoors.
- The price more economic than pulse POC.
- The oxygen flow more efficient than the portable pulse with 5 setting, and the SpO2 can be increased from 77% to 92-97% within half an hour on the plateau.
- Very suitable for use at plateaus above 3600 meters, it is an ideal oxygen supplement model.
Specifications
| Type | B-1 | B-1P |
|---|---|---|
| Flow Rate | Continuous flow 1-7L | Pulse dose up to 5L & Continuous flow 1L |
| Oxygen Concentration | 93%~30% | 93%±3% |
| Net weight | 6Kgs | 6Kgs |
| Dimension | 220*280*310mm | 220*280*310mm |
| Outlet Pressure | 6-10 PSI(0.04-0.07Mpa) | 6-10 PSI(0.04-0.07Mpa) |
| Input Frequency | 50Hz ; 60 Hz | 50Hz ; 60 Hz |
| Input Voltage | AC230V± 10% ; AC110V ± 10% | AC230V± 10% ; AC110V ± 10% |
| Optional Accessories | Multiple power supplies AC & DC available for in car and battery outdoors | |

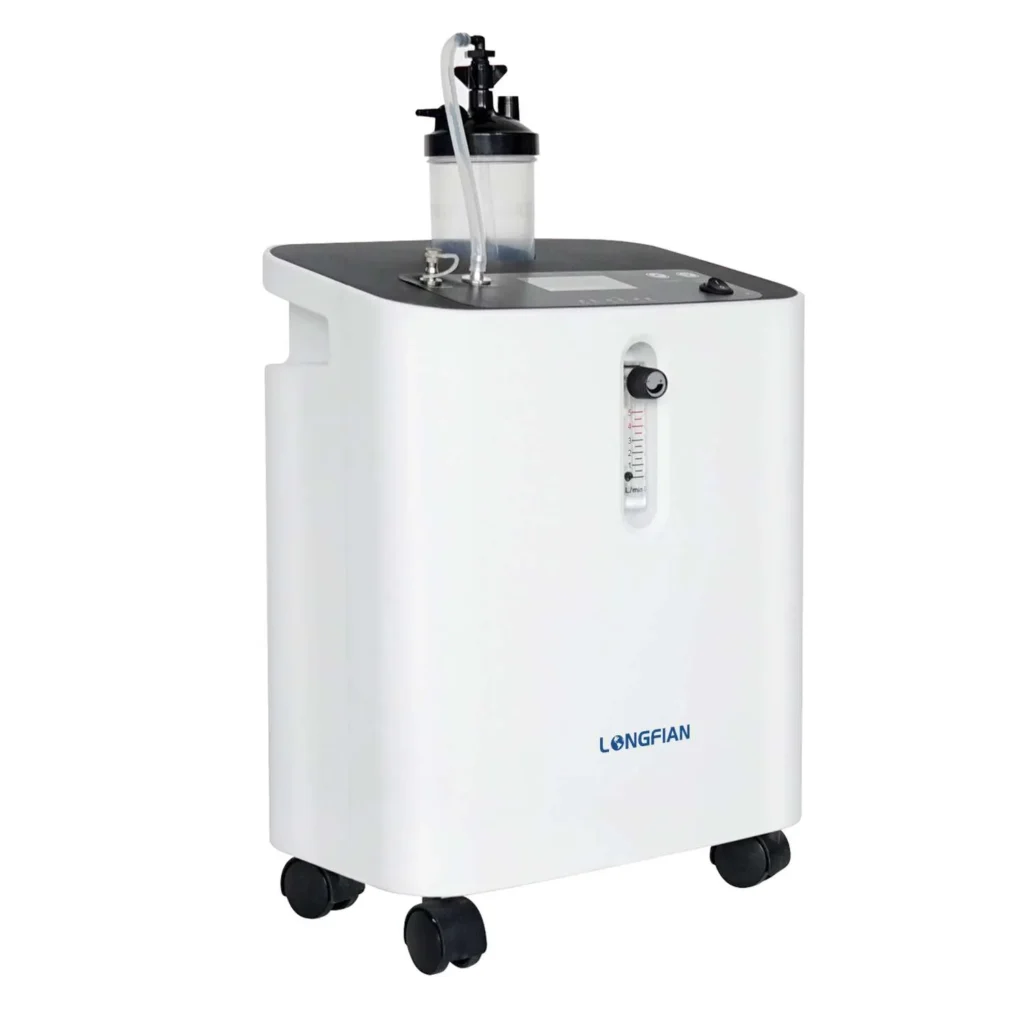

3L Oxygen Concentrator JAY-3EW
Features
- Ultra quiet, small size and light weight.
- Convenient daily maintenance.
- Easy to read LCD display and simple control.
- With wheels and handle, easy to move.
- Inhale high purity oxygen (93%±3%) at home.
- Two setting modes:
- Setting 1: continuous flow
- Setting 2: pulse dose 9LPM
Specification
| Model | JAY-3EW |
|---|---|
| Flow Rate | 0.5-3L/min |
| Oxygen Concentration | 93%(±3%) |
| Outlet Pressure | 6-10Psi |
| Net Weight | 12Kgs |
| Dimension | 215*335*450mm |

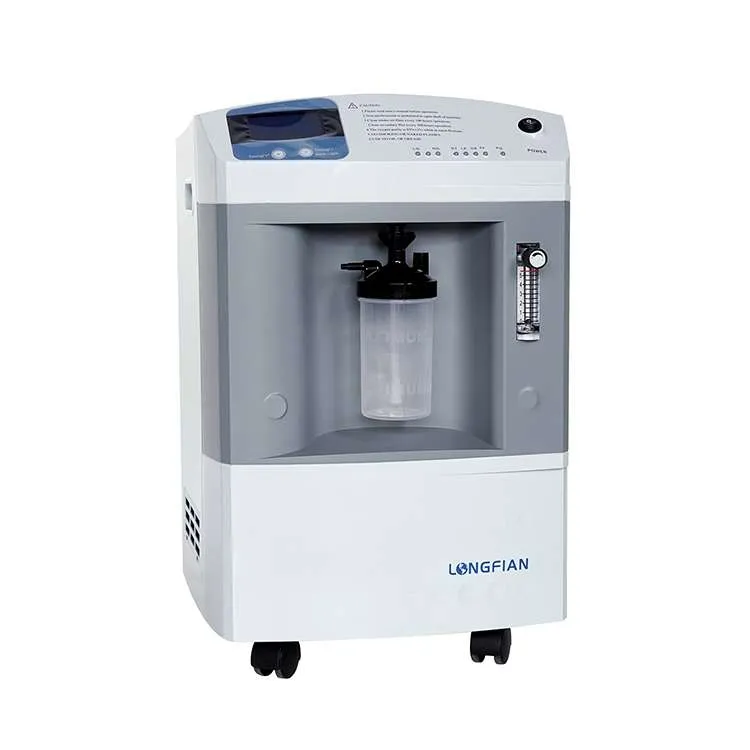

5L Medical Oxygen Concentrator JAY-5
Features
- With medical grade oxygen concentration above 90%, better treatment effect for patients with pulmonary fibrosis;
- Innovative cooling technology to ensure 24/7/365 operation;
- Humidifier bottle with a pressure relief valve of 6PSI, safer and more comfortable;
- Four flexible castors with two brakes, easy to move or situate in any direction, safer and more convenient;
- Simple operation functions and easy-to-read LCD Display;
- Connected to HFNC, provide oxygen with stable high concentration, more comfortable;
- Connected to HBOC, rapidly and effectively increase the patient’s SPO2.
Specification
| Model | JAY-5 |
|---|---|
| Flow Rate | 0.5-5L/min for JAY-5 |
| Oxygen Concentration | 93% (±3%) |
| Outlet Pressure | 6-10PSI (0.04-0.07mpa) |
| Sound Level | ≤ 40dB |
| Net weight | 17Kgs |
| Power Consumption | ≤ 350W |
| Input Frequency | 50Hz ; 60 Hz |
| Input Voltage | AC 230V ± 10% ; AC 110V ± 10% |
| Alarm |
1. Power failure alarm; 2. High and low pressure alarm; 3. Low oxygen concentration alarm; When oxygen purity is ≥82%, blue light illuminate; When oxygen purity is <82%, red light illuminate, indicating low purity; |

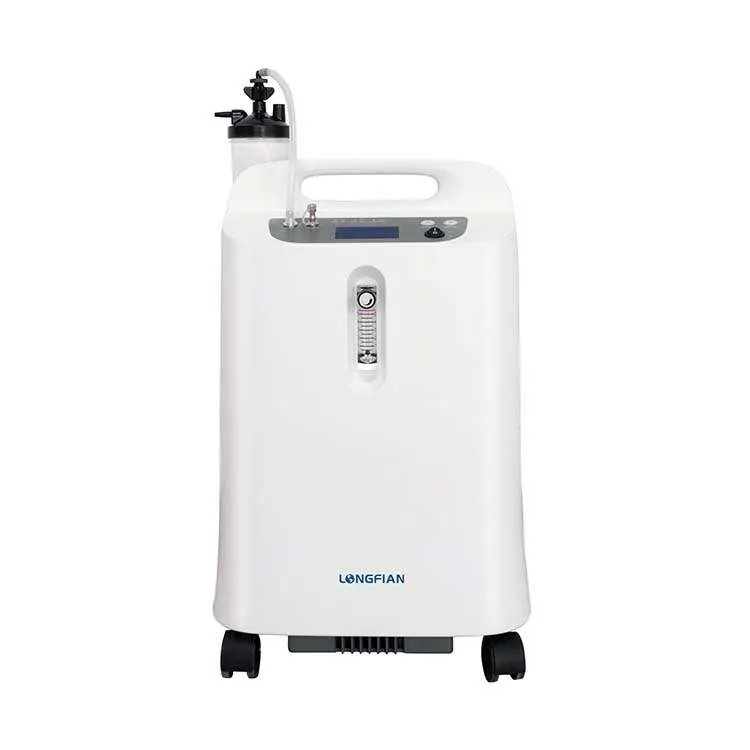

Stationary Oxygen Concentrator JAY-5DW
Features
- Innovative cooling technology to ensure 24/7/365 operation;
- Humidifier bottle with a pressure relief valve of 6PSI, safer and more comfortable;
- Simple operation functions and easy-to-read LCD display;
- Low power consumption, energy and electricity saving.
Specification
| Model | JAY-5DW |
|---|---|
| Oxygen Flow | 0.5-5L |
| Oxygen Concentration | 93%(±3%) |
| Power Consumption | ≤280W |
| Outlet Pressure | 0.04-0.07MPA (6-10Psi) |
| Sound Level | ≤40dB |
| Dimension | 355*245*595mm |
| Alarms | Power failure alarm; High & low pressure alarm; Low oxygen concentration alarm |
