Veterinary Oxygen Concentrator
Veterinary Oxygen Therapy
Veterinary Oxygen Concentrator
Features
- Using molecular sieve pressure swing adsorption principle, using air as raw material to physically produce oxygen;
- It can meet the oxygen supply for anesthesia machine, the outlet pressure is as high as 60 Psi (0.4Mpa), and it can be connected to most international brands of anesthesia machines and ventilators;
- For large animals more than 7kgs, such as cattle, horses, etc;
- It meets the various clinical demands of veterinarians, and is widely applicable to the oxygen supply for veterinary clinic surgery, post-operation, ICU and emergency;
- It can connect with buffer tank to supply oxygen stably. According to the oxygen demand, the oxygen production program is automatically stopped and automatically started.
Specification
| Flow Rate | 1--10 L/min; 1--20 L/min; | Net Weight | 90kgs ; 118kgs |
|---|---|---|---|
| Oxygen Concentration | 93% (±3%) | Power Consumption | ≤1250W ; ≤2000W |
| Outlet Pressure | 60 PSI (0.4Mpa) | Input Frequency | 50Hz ; 60 Hz |
| Sound Level | ≤ 50dB;≤ 60dB | Input Voltage | AC230V ± 10% ; AC110V ±10% |
| Alarm |
1. Power failure alarm; 2. High and low pressure alarm; 3. Low oxygen concentration alarm; |
||

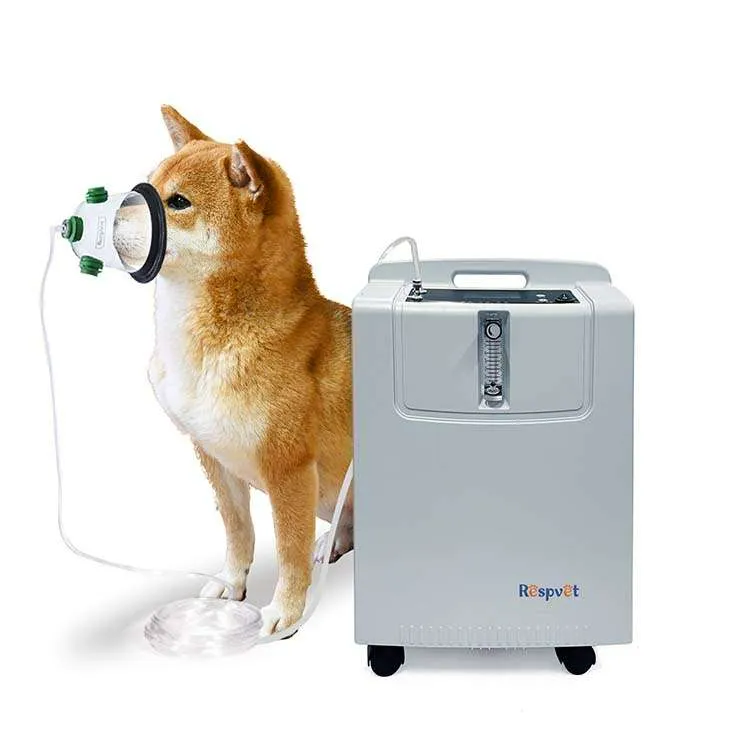

5L Oxygen Concentrator
Features
- 2-5 L/min(VET-2E/VET-3EW/VET-5KW) are recommended to achieve an FiO2 of 35% to 60%.
- Convenient for oxygen supplementation to patients undergoing procedures.
- Portable veterinary oxygen concentrators are designed to be compact and easy to carry around. This makes them perfect for use by veterinarians on the go, or by pet owners who need to regularly administer oxygen therapy at home.
- Low maintenance and easy to use, the oxygen machine require minimal upkeep and can be operated by veterinarian and owner with basic training.
- User-friendly and Cost-effective, extracts oxygen from air, eliminates the inconvenience of tank change.
Specification
| Flow Rate | 0.5-5L/min | Net weight | 15Kgs |
|---|---|---|---|
| Oxygen Concentration | 93% (±3%) | Power Consumption | ≤ 350W |
| Outlet Pressure | 6-10PSI(0.04-0.07mpa); | Input Frequency | 50Hz ; 60 Hz |
| Sound Level | ≤40dB | Input Voltage | AC230V ± 10% ; AC110V ±10% |
| Alarm |
1. Power failure alarm; 2. High and low pressure alarm; 3. Low oxygen concentration alarm: When oxygen purity is >82%, blue light illuminate; When oxygen purity is <82%, red light illuminate, indicating low purity; |
||
✧ Supplemental oxygen is an important treatment for animals with signs of respiratory distress. Similar to humans, the use of a face mask is an easy means of administering oxygen to an animal.

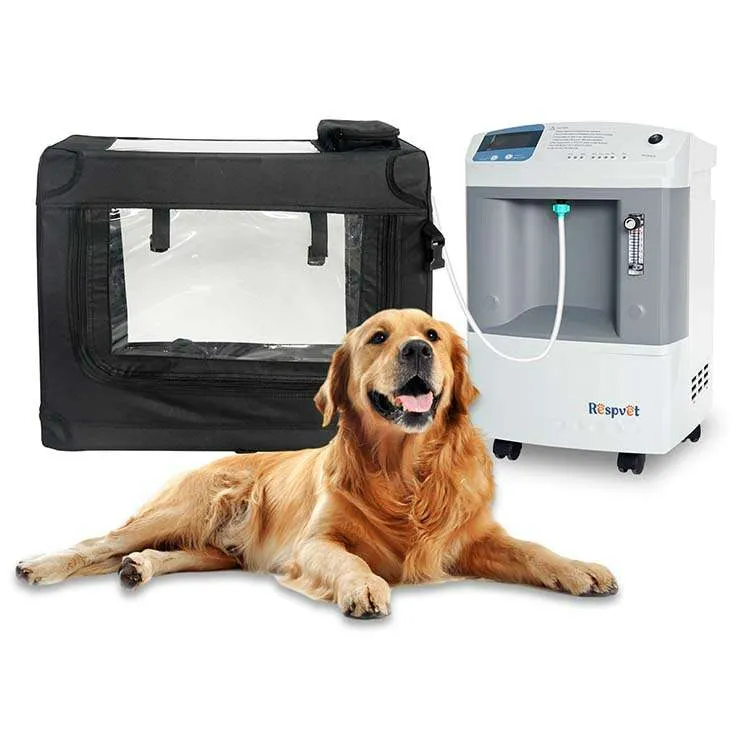

10L Oxygen Concentrator
Features
- Using molecular sieve pressure swing adsorption principle, using air as raw material, physical oxygen production, eliminating the trouble of daily tank changing and inflation;
- One machine with multiple functions, to meet the needs of animal anesthesia machines for oxygen supply, postoperative oxygen supply, ICU oxygen supply, and emergency oxygen supply;
- With high outlet pressure, it can be connected to a cage and can be used as an anesthetic gas source for small animals less than 7kgs, such as cats and dogs;
- It meets the various clinical demands of veterinarians, and is widely applicable to the oxygen supply for veterinary clinic surgery, post-operation, ICU and emergency;
- Oxygen is supplied according to the time set by the user, and the oxygen production program is automatically stopped.
Specification
| Flow Rate | 0.5~10L/min | Net weight | 27Kgs |
|---|---|---|---|
| Oxygen Concentration | 93% (±3%) | Power Consumption | ≤ 880W |
| Outlet Pressure | 6-10 PSI (0.04-0.07 Mpa) | Input Frequency | 50Hz ; 60 Hz |
| Sound Level | ≤ 50dB | Input Voltage | AC230V ± 10% ; AC110V ±10% |
| Alarm |
1. Power failure alarm; 2. High and low pressure alarm; 3. Low oxygen concentration alarm: When oxygen purity is >82%, blue light illuminate; When oxygen purity is <82%, red light illuminate, indicating low purity; |
||
